Home Subscriber Server

HSS icon

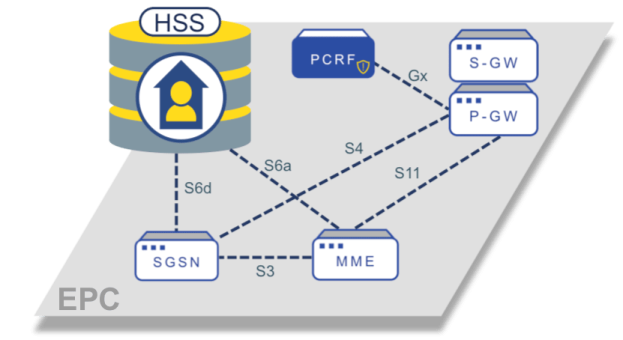

The Long Term Evolution-Home Subscriber Server (LTE-HSS) serves as the primary database repository of subscriber information within Evolved Packet Core (EPC).The Long Term Evolution-Home Subscriber Server (LTE-HSS) serves as the primary database repository of subscriber information within Evolved Packet Core (EPC).


The LTE-HSS exchanges messages with an MME or a SGSN using the Diameter Protocol.


The LTE-HSS serves as a registration and authentication of mobile subscribers in the EPC network, while also tracking their mobility by acting as the real-time location repository and updating their position in administrative areas handled by MME’s/SGSN’s.





3GPP Standards Support

compliance

Fully compliant data-model/protocol with 3GPP Release 12 standard, designed and tested for multi-vendor environments.

data packet

Full featured support of EPC networks. Supports communicating with MME, SGSN and combined MME/SGSN.

3GPP release 12

Full HSS data-model based on 3GPP Release 12.

HSS interface

HSS interface support - S6a (to the MME), S6d (to the SGSN)




HSS Protocol Compliance

S6 application

The LTE HSS supports S6a/S6d application over - Diameter/SCTP.

compliance

S6a/S6d implementation is compliant with
- TS 29.272 v12.8.0 (Sep 2015)
- TS 23.401 v12.8.0 (Sep 2015)

S13 Diameter

The LTE HSS includes the S13 Diameter protocol in roadmap to provide an EIR control service.

HSS Features

  • MREALM Support for multi-realm
  • MTENANCY Support for multi-tenancy
  • ROAMING Support for Roaming Control and Screening
  • SRVCC Support for Voice Call Continuity Service
  • TADS Supports for The Terminating Access Domain Selection (T-ADS)

  • ODB Operator Determined Barring
  • MMSISDN Multi MSISDN per SIM
  • MIMSI Multiple IMSI
  • STATS Stack and HSS services and platform stats
  • KPIS Protocol KPIs
