DRA header imageDiameter Routing Agent

The SVI-DRA is at the core of a Diameter network providing comprehensive, carrier grade traffic management enabling service providers IMS and LTE core networks to run smoothly.

SVI-DRA Diameter Routing Agent

Sitting at the center of a Diameter network the SVI-DRA reduces complexity. High volume traffic is managed through dynamic load balancing and configurable throttling whilst multi-vendor support is provided by onboard mediation. Powerful routing, filtering and message manipulation available as standard with complex policy building provided through the onboard policy engine. NFV compliant the SVI-DRA provides a secure, scalable, high availability platform providing total control of an operators Diameter network.



SVI-DRA Features

dra mediation iconMediation Platform
The SVI-DRA acts as mediation platform within the network allowing complex routing and normalisation of messages across the Diameter network.



dra load balancingLoad Balancing
The Diameter Routing Agent provides load balancing and throttling to insure the optimum management of the DIAMETER network.



dra throttling iconSophisticated Throttling
Multiple Transaction Criteria Records (TCR’s) can be created to define transaction allowance and actions to take; queue, ignore and reject transactions.

dra binding iconSession Binding
Bind a session to a device or cluster of devices. Start bind - Configure message or AVP to initiate bind. End bind on receipt of correct response or timeout.



dra dictionaries iconDiameter Dictionaries
Used to define Diameter Messages, AVP formats, contents and ENUM resolution. DRA can be configured to consist of 3GPP and vendor specific dictionaries.



DRA filteringFiltering
Message filtering can be applied to avoid known issues by comparing message headers and AVP contents against configured black lists and white lists.

DRA redirectsRedirects
The SVI-DRA can act as a redirect server by redirecting messages to another service, as well providing advanced load balancing and throttling.



DRA routingCentralised Routing
The SVI-DRA provides centralised routing based upon message headers and AVP’s, reattemps, load balancing profiles and external lookups.



DRA message manipulationMessage Manipulation
Powerful regular-expression based manipulation of message header and AVP contents allows for removal, creation and replacement.

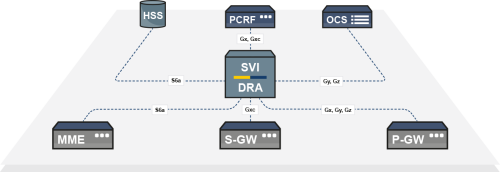

Deployment

DRA functionality

Functionality

SVI C5 softswitch OA&MManagement and Monitoring
Comprehensive web based SVI-MS Management system delivering on-board configuration, monitoring and debugging facilities. Full SNMP v1, 2 and 3 supports.


SVI C5 softswitch high availbilityHigh Availability
Carrier grade reliability supplied through comprehensive range of high availabilty options.

SVI GMSC  deliveryCloud & COTS Delivery
NFV compliant allowing delivery on a range of cloud native platforms. Can be delivered on a range of COTS server platforms either remotley or shipped from base.


SVI performancePerformance
Highly scalable. Real-time time expansion available thorugh software license upgrades

Testimonials

bohdanGMS NextGen Diameter Solution

“The key to this decision was a clear road map that will allow us to migrate our SS7 platform to a next generation solution whilst knowing we have an integrated DIAMETER solution for tomorrow“ GMS Operations & Maintenance Manager, Bohdan Hretchenko. read more >



Stefan AnghelSimfony IOT DSC Deployment

“We need to manage the signalling transport that delivers IoT between our virtual mobile core, multiple operator interconnects and our clients. It is critical for us to choose a partner whose expertise can bridge 2G, 3G and 4G networks” Simfony CTO, Stefan Anghel. read more >



milan jovancicRenna Mobile Implement IWF

“We required a flexible solution in delivering the specific functionality, meeting our needs and technical specifications while being on budget. Squire Technologies SVI-IWF Interworking Function delivered this. Group CTO Milan Jovancic. read more >

Further Information
