dsc headerDiameter Signalling Controller

The SVI-DSC provides a carrier grade Diameter signalling product delivering any combination of routing (DRA), inter-working (IWF) and network edge (DEA) functionality.

dsc headerDiameter Signalling Controller

SVI-DSC Diameter Signalling Controller

The increasing rollout of 4G LTE, IoT, VoWiFI, VoLTE and VoIP networks globally is seeing a resultant rise in the volume of DIAMETER signalling on networks worldwide. The SVI-DSC provides network operators a scalable, NFV compliant, carrier grade solution providing…

DSC signallingComprehensive Diameter traffic management

DSC interopInter-operability with legacy networks

DSC roaming3G - 4G Roaming



DSC wifi offloadWi-Fi offload for mobile subscribers

dsc security iconNetwork edge security

DSC load balancingAdvanced load balancing



SVI-DSC Components

The SVI_DSC consists of three components, the Diameter Routing Agent, Diameter Edge Agent and the Interworking Function. Any combination of these components can be deployed in a single or distributed network architecture.

Diameter Routing Agent

Diameter Routing Agent

Diameter Routing Agent for scalable, centralised routing of Diameter messages in a multivendor, multi node environment within a service providers IMS and LTE core.

Diameter Edge Agent

Diameter Edge Agent

Diameter Edge Agent for secure exchange of authentication, authorisation and subscriber policy across LTE networks.

Diameter Interworking Function

Interworking Function

The Interworking Function insures operators 4G Diameter networks can successfully interconnect to legacy 2G/3G networks, equipment and signalling standards.



Modular Design

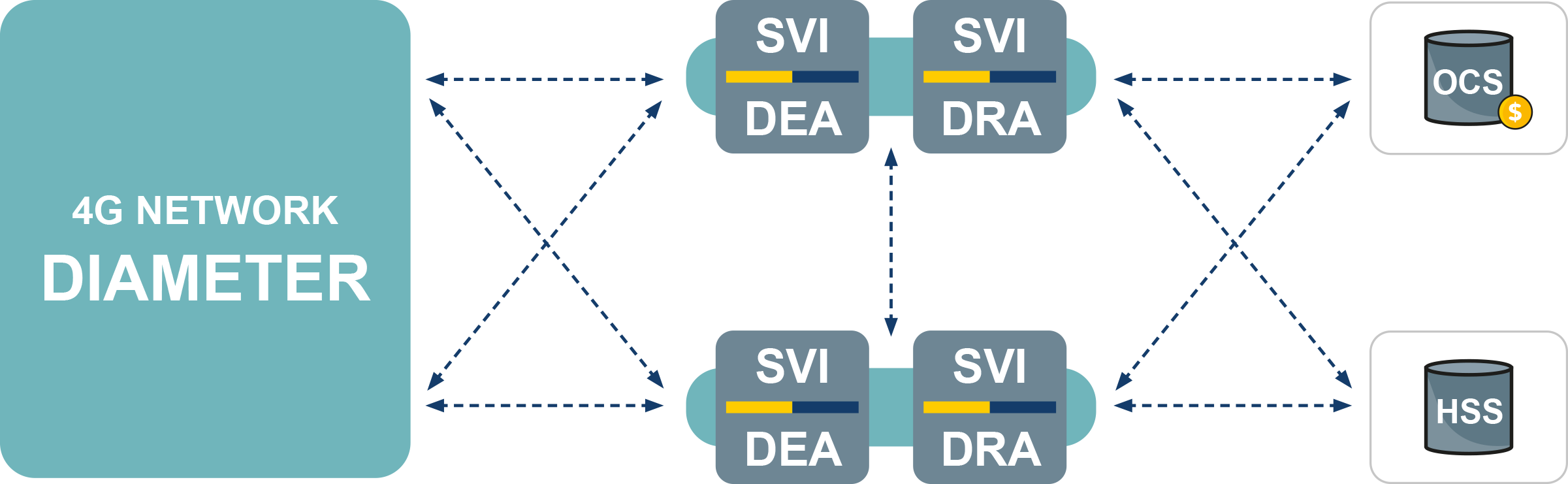

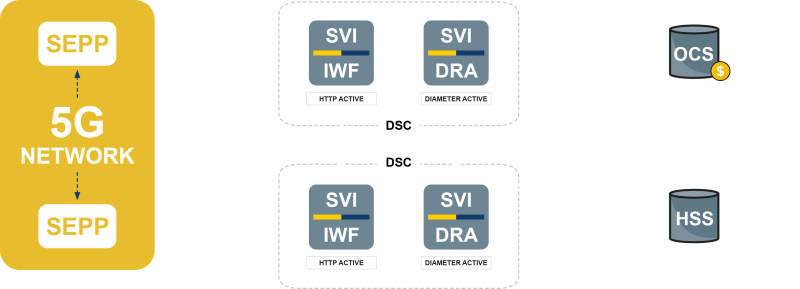

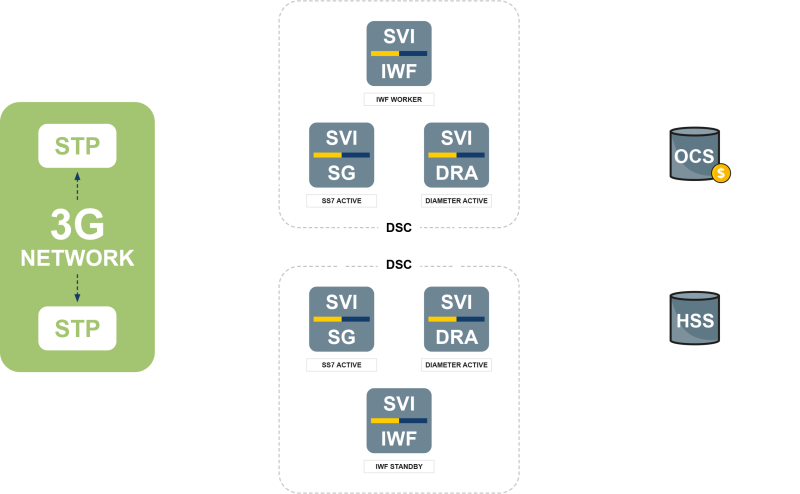

DSC deploymentsThe SVI Diameter Signalling Controller’s modular design enables it to be deployed as an integrated product with Squire Technologies SS7 Signalling Transfer Point product (SVI-STP) and Session Border Controller product, the SVI-SBC.



Application Development

tas api networkThe SVI_TAS operates over clearly defined API's that present an abstracted version of the underlying DIAMETER, SIP, CAMEL, MAP etc signalling. It can be driven by either Squire Technologies python based client (SVI_TAC) or by operators 3rd party applications, It provides an extremly flexible platform on which operators can define, configure and launch new services.

svi TAS iconExtended application development on top of SVI-DSC product using the Python based (SVI-TAS) Telephony Application Server


tas apiEnables operators to interface to USSD, RADIUS, JSON, SQL, XML, SOAP, proprietary API’s etc.



Testimonials

bohdanGMS NextGen Diameter Solution

“The key to this decision was a clear road map that will allow us to migrate our SS7 platform to a next generation solution whilst knowing we have an integrated DIAMETER solution for tomorrow“ GMS Operations & Maintenance Manager, Bohdan Hretchenko. read more >



Stefan AnghelSimfony IOT DSC Deployment

“We need to manage the signalling transport that delivers IoT between our virtual mobile core, multiple operator interconnects and our clients. It is critical for us to choose a partner whose expertise can bridge 2G, 3G and 4G networks” Simfony CTO, Stefan Anghel. read more >



milan jovancicRenna Mobile Implement IWF

“We required a flexible solution in delivering the specific functionality, meeting our needs and technical specifications while being on budget. Squire Technologies SVI-IWF Interworking Function delivered this. Group CTO Milan Jovancic. read more >

Further Information
