Leverage IMS, NGN and legacy infrastructure to deliver new and existing services
Mitigate against vendor equipment End-of-Life
Rapidly deliver custom services across disparate networks
Extend ROI on deployed network components
Cost Savings
Deliver only those services that you require instead of paying for a full application suite that you will never use.Powerful
Services built using industry standard
Python scripting language.Extendable
Extend services using in-house resources
or let our experts develop at a fixed cost.
Speed
Script-based delivery removes compilation
and upgrade cycle.Flexible
Allows monitoring, termination and transmission
over APIs for service creation.NFV
NFV ready technology.

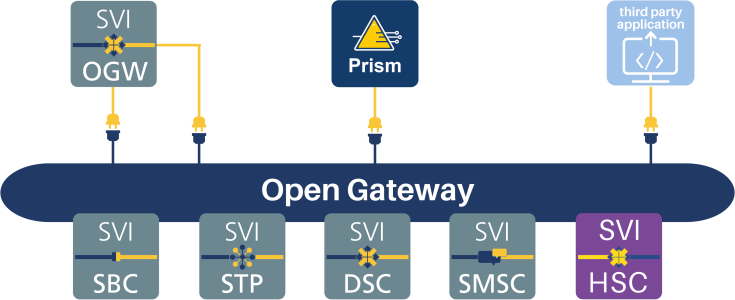

The Open Gateway operates over clearly defined APIs that present an abstracted version of the underlying HTTP/2, DIAMETER, SIP, CAMEL, MAP etc signalling. It can be driven by either Squire Technologies’ python-based client (SVI-TAC) or by operators’ 3rd party applications.

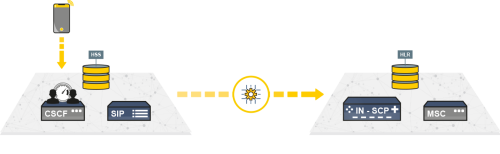

The SVI-STP supports the 3GPP IMS component the IM-Service Switch Function (IM-SSF) 3GPP 23.278 providing a seamless bridge between an IMS network (SIP) and a CAMEL-based SS7 Intelligent Network via Squire Technologies integrated SVI-OGW Open Gateway.
When an operator initially deploys an IMS network, they are unlikely to be able to enable all the revenue services available to their existing legacy subscribers. To ensure continuity of service the IMS network can leverage the existing Intelligent Network through the IM-SSF component.
The HLR offers a secure Equipment Identity Register (EIR) to combat stolen, unauthorized or defective equipment usage, and its Authentication Centre (AuC) prevents SIM cloning and provides encryption keys.
In parallel, the HSS creates a mobile subscriber information database for registration and authentication in LTE/EPC or IMS networks.
The UDM plays a pivotal role in managing user-related data, such as subscriber profiles, authentication credentials, and authorization policies. It ensures that only authorized users can access the 5G network and services while maintaining the integrity, security, and privacy of user information.
In “reverse” the IM-SSF allows legacy subscribers to access the new services available in an IMS network. It is the glue that allows legacy subscribers to access new services run from SIP application servers – i.e Mobile PBX, OTT etc.
Integrated Signalling Relay Function:
Seamlessly enables Mobile Number Portability
Manage the interface between GMSCs + HLRs
– SCCP Call Steering
– Call Control Triggering
Integrates over a range of APIs
– JSON
– SQL
– ENUM
Support for 3GPP TS 23.066

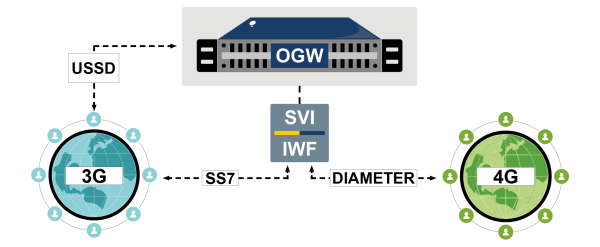

Unstructured Supplementary Services Data (USSD) is a session-based protocol used in 2G/3G networks to send text between a mobile phone and an application program in the network. Unlike SMS there is no store and forward as USSD transactions only exist for the length of a session. USSD applications are generally menu driven and can push text in a menu format to subscriber handsets.
Applications
- Pre-Paid Roaming – USSD used in the network to check in real-time
subscriber has enough credit for a call - Pre-paid subscribers – use USSD to manage and top-up their accounts
- Mobile Money – subscribers able to make payments and purchases
via their phones menu driven USSD interface
