SVI-SBC SESSION BORDER CONTROLLER

A state-of-the-art, cloud-enabled Session Border Controller

The SVI-SBC provides comprehensive network edge security for fixed and mobile service providers and large enterprise customers.

Session Border Controller SBC

The SVI-MG range of Media Gateways are fully featured, carrier-grade products with a flexible and powerful routing engine and comprehensive web-based GUI.

The SVI Media Gateway is offered in two models, the SVI-MG 1000 and SVI-MG 8000 to satisfy the client’s deployment requirements and budget.

With full support for VoLTE and IMS-based standards, the SVI-MG provides a full Breakout Gateway Control Function (BGCF). A mature, proven, carrier-grade technology packed with feature-rich capabilities derived from over a decade of global deployments.

SBC Graphic 3

Flexible pricing designed to meet budget expectations,
deployment scale and future growth

  • Global Deployment
    Deployed globally by operators since 2011.

  • Signalling Manipulation
    Powerful SIP Signalling Manipulation Engine (SSME) insuring total flexibility.

  • Scalability
    Scales to 30k sim calls at 500 cps.

  • Functionality
    Feature-rich functionality with extensive service assurance options.

  • Fraud and Security
    Firewall capabilities and integrated fraud prevention gateway.

  • High Availability
    Full high availability options as standard.

SVI-SBC Session Border Controller key features

Scalability icon

Scalability

Micro-services architecture enables rapid scaling and dynamic load balancing.

Fraud Prevention icon

Service Assurance

Fraud Prevention, Statistical Analysis, Sophisticated Routing and Elastic Stack Kibana support.

Complex Routing icon

SIP Signalling Manipulation Engine

Detailed message and header manipulation, filters and redirects and powerful routing.

Redundancy icon

High Availability

Comprehensive carrier-grade redundancy options as standard.

Debug and Trace icon

Debug and Trace

Detailed, debug and trace capabilities.
PCAP support enables Wireshark decode.

laptop icon

OA&M

Configuration, Monitoring
and Debugging.

The SVI-SBC Session Border Controller key specifications

Performance

  • 500 to 30,000 sim calls

  • 500 calls per second (CPS)

  • Up to 250k subscriber registrations

Security

  • Built-in Firewall

  • State-of-the-art DDOS protection

  • Encryption -TLS, IPSec, SRTP

  • Blacklist / Whitelist

  • Access control

Protocol Support

  • SIP, SIP-I, SIP-T, H.323

  • IPv4, IPv6

Media

  • NAT/topology hiding

  • Comprehensive codec support

The SVI-SBC Session Border Controller applications

The SVI-SBC is a mature, carrier-grade VoIP signalling product deployed globally in the following application scenarios:
  • Peering
    Comprehensive session control, interworking and media management.

  • SIP Trunks
    The SVI-SBC provides a robust and flexible SIP trunking solution for operators.

  • SKYPE for Business
    Support for Microsoft “Skype for Business” SIP interconnects.

  • IMS Interworking
    Full support for a-sbc and i-sbc access, and interworking modes. VoLTE interconnect support.

  • Lawful Intercept
    Enable ETSI, CALEA, SIPREC intercepts.

  • Real-Time Fraud Prevention
    Combat SIP-based fraud in real-time with the integrated SVI-FPG Fraud Prevention Gateway.

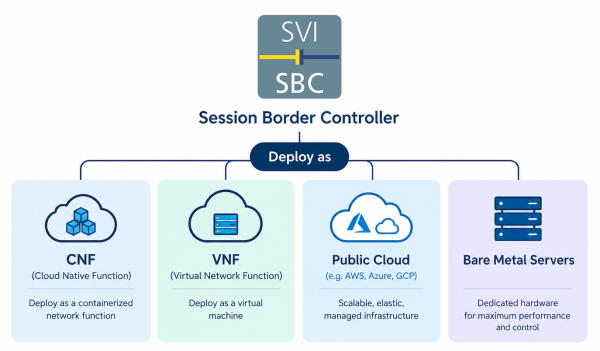

Commercial Off The Shelf

Supplied on standard Dell servers optionally with dedicated E1/T1/STM-1 support.

Virtual Deployment

Virtual Machine deployed on industry-standard servers in a data centre environment using a hypervisor, i.e. VMware.

Cloud Deployment

Delivered as a Virtual Network Function (VNF) in AWS, OpenStack, Nokia and Google cloud infrastructure.

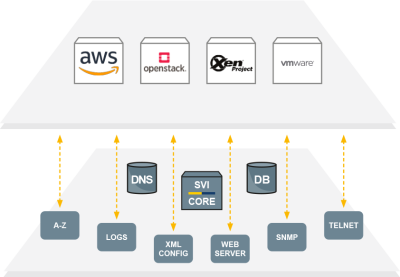

Virtualisation

The SVI-SBC session border controller is deployed in virtual environments worldwide enabling operators to benefit from the reduced costs and benefits that a cloud-native component can deliver them.

The SVI-SBC can be enabled as a Virtual Machine (VM) on existing infrastructure or as a fully blown Virtual Network Function (VNF) in an AWS or OpenStack cloud infrastructure.

Auto Configuration

Open product management interfaces allow for auto-configuration by an orchestration platform. Whether orchestration is physically delivered via an XML, SQL, HTTP, TELNET etc interface, the SVI-SBC session border controller has been designed from the ground up to deliver remote operation, administration and maintenance (OA&M) control.

Virtualisation diagram

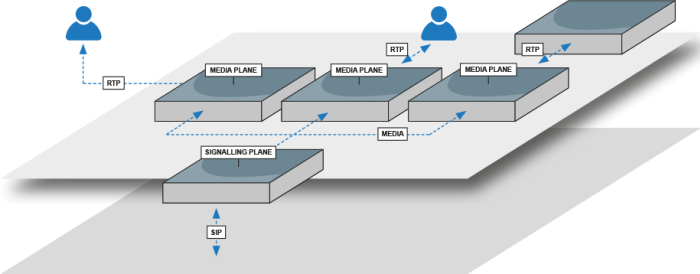

Distributed Architecture

The SVI-SBC is architected on micro-services principles separating the signalling and media planes into distinct software components. The signalling plane provides a high availability core enabling centralised routing and control across the network.

Multiple media planes can be instantiated dynamically to meet bandwidth demands and/or distributed across different territories to match latency requirements and improve network resiliencyand offer carrier-grade reliability.


Distributed Architecture diagram

Elasticity

This architecture enables on-demand scaling in a virtual environment delivering full network elasticity.

Dynamic Load Balancing

Dynamic load balancing insures optimum network performance with network load shared evenly across network components.

Network Resilience

The distributed network architecture insures network resiliency coupled with high availability options and carrier-grade reliability.

SIP Signalling Manipulation Engine | SSME

Message Manipulation icon

Message Manipulation

Powerful regular-expression-based manipulation of message header and contents allowing removal, creation and replacement.

Redirects icon

Redirects

Acts as a redirect server by redirecting messages to another service. Can be used to provide load balancing/throttling.

Filtering icon

Filtering

Black List / Whites based on Message Header and contents.

Routing icon

Routing

Message Header and contents Reattempts. Load balancing profiles External Lookups.

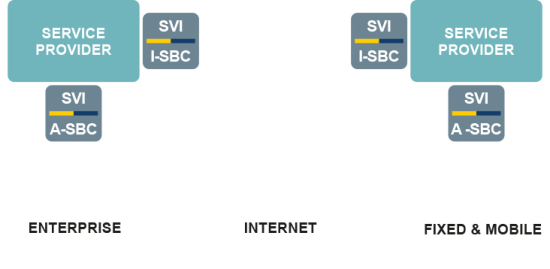

IMS Support | A-SBC + I-SBC

The SVI-SBC provides next-generation support for secure interconnecting to IMS-based networks. Delivering comprehensive VoLTE support allows the SVI-SBC to be deployed in the core of an IMS network or provide IPX / Roaming Hub interconnect.

The SVI-SBC provides a flexible architecture allowing providers to consolidate functionality and resources at both the access and interconnect interface through support for both the A-SBC and I-SBC modes.

IMS Support diagram

A-SBC

The Access-SBC sits on a service provider’s access borders, i.e enterprise locations, internet, 3G/4G mobile and fixed line.

Supports IMS functions:

  • P-CSCF: Proxy Call Session Control Function
  • E-CSCF: Emergency Call Session Control Function
  • BGCF: Breakout Gateway Control Function
  • AGW: Access Gateway
  • ATCF: Access Transfer Control Function
  • ATGW: Access Transfer Gateway

I-SBC

The Interconnect-SBC sits on the service provider’s interconnect borders, i.e. the borders between the service provider’s networks.

Supports IMS functions:

  • IBCF: Interconnect Border Control Function
  • IWF: Interworking Function
  • I-BGF / TrGW: Transition Gateway

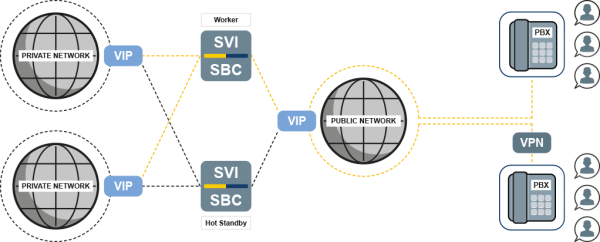

High Availability

1+1 Dual Plane Worker/ Hot Standby
– Database and signalling information checkpointed between planes
– Replicated hardware and software
Maintain SIP calls in answer on failover
Eliminates single points of failure
Five Nines uptime (99.999%)
Single IP service address using VIP technology
Real-time Maintenance upgrades
RTP Failover and Re-Invite

High Availability diagram 2

Real-Time Fraud Prevention

The annual loss globally to the Telecoms industry from fraud is currently estimated by the CFCA (Communications Fraud Control Association) to be $29.2 billion.

Enable the real-time fraud prevention gateway, MavenShield, to:

  • Combat SS7 fraud in real-time
  • Proactively block, tear down, transfer and redirect fraudulent calls
  • Seamless interface to upstream firewall and monitoring applications
  • Deployed in the non-critical path of network
  • Rapidly provision network lookups aimed at identifying fraudulent traffic



mavenshield logo

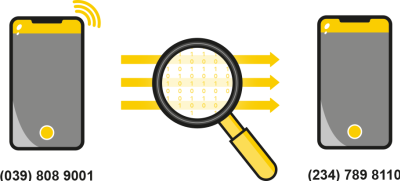

Lawful Intercept

The SVI-SBC session border controller from Squire Technologies allows operators to enable Lawful Intercepts:

Active or Passive Intercept support for:

3GPP/ ETSI LI Standards
SIPREC ( RFC 7245 )
CALEA

Lawful Intercept diagram
