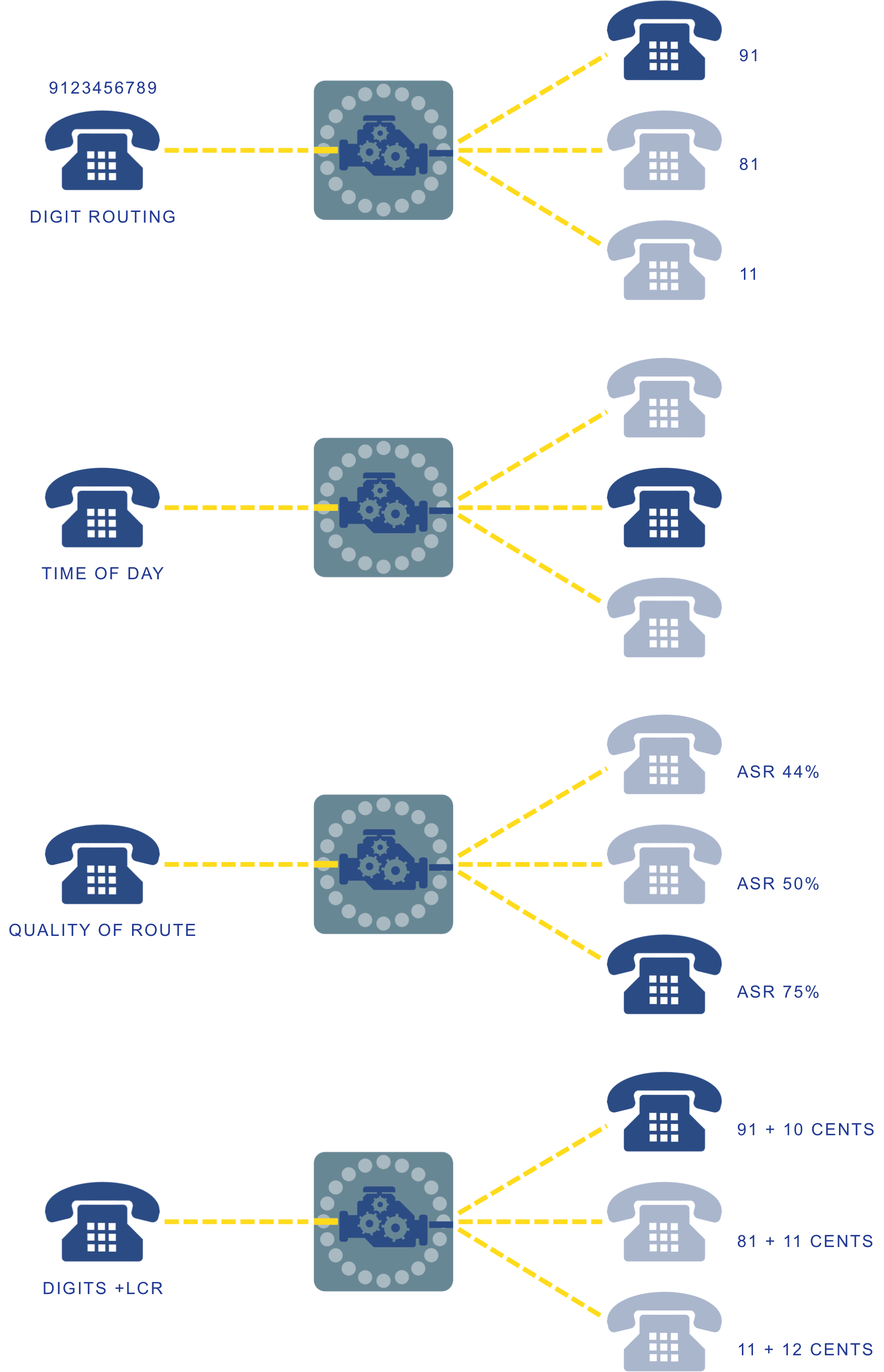

Incoming Calls Routed based upon
- Called and Calling Party Information
- Protocol Information
- Originating Network
– Trunk Group
– Hunt Group (VoIP and TDM)
– VoIP Destination
– Protocol - Time of Day
- Cost of Route
Outgoing Call Manipulation
- Called and Calling Party Information
- Protocol Information
Enhanced Call Completion Algorithms
- Reattempt call
– Same destination and/or different destinations
– Reattempt based on call failure reason - Load share across different destinations
– Hunt high, low, odd, even, incremental, decremental, percentage, ASR
Other
- Reject Call with Protocol Reason
- Reject Call with announcement

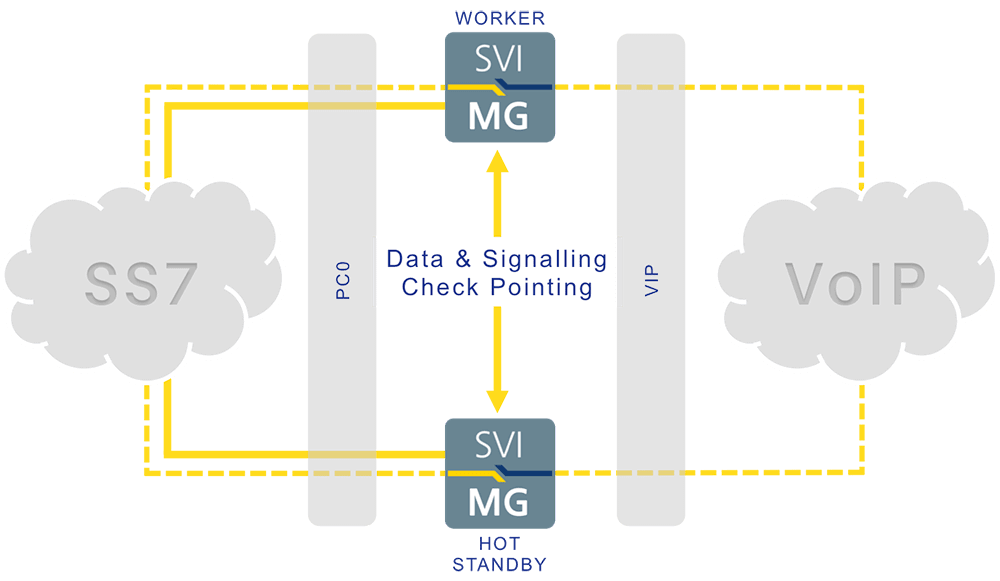

1+1 Dual Plane Worker / Hot Standby SVI-1000
- Database and signalling information check pointed between planes
- Replicated Hardware and Software
- Maintain calls in answer on failover
- Eliminates Single Points Of Failure
- Five Nines up time (99.999)
- Single Point code spread across dual plane architecture
- Real Time Maintenance Upgrades
- 1+1 Dual Plane Redundancy
- Hot Swap PSU, Fans

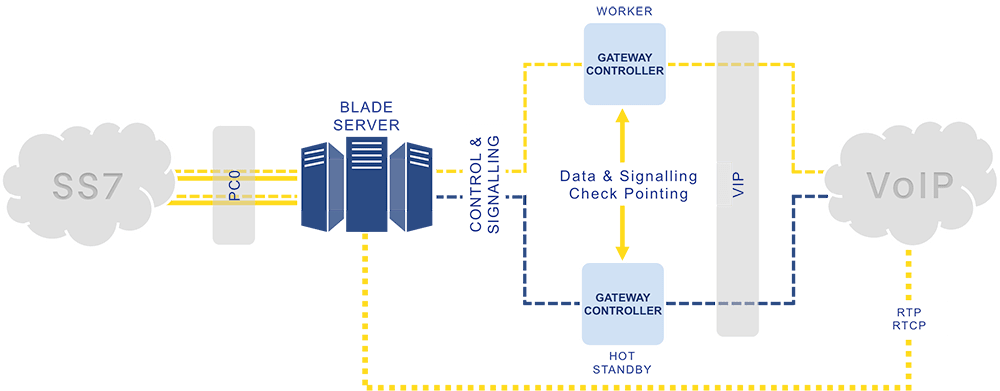

SVI-MG 8000 Media Gateway
Separate processing units and interface cards
- No loss of bandwidth during processing
unit outage - Support of multiple blade servers
Dual Controller Planes
- 1+1 Dual Plane Redundancy
Blade Server
- Up to 8 Hot Swap PSUs
- Each Interface Blade has redundant Ethernet
- Passive Back Plane
- Hot Swap Fans
- Hot Swap Blades
